Normal Gradients of Kernel Interpolants

Motivation

A few months ago I was reading this paper, which distinguishes between benign, tempered, and catastrophic overfitting in kernel interpolants¹. The classical picture of benign overfitting² is a bit mysterious; the model memorizes noise in the training labels, but somehow achieves Bayes optimal error on the test set. A natural question is that if the model has memorized noise, why does that not affect its generalization performance -- in some sense, where is that noise "stored"?

The answer turns out to be geometric: the noise is pushed into the normal directions of the data manifold. A kernel interpolant trained on noisy labels looks smooth along the manifold (thus it generalizes), but oscillates wildly in directions perpendicular to it. This gives us a clean separation between two often conflated ideas:

• Generalization depends on the tangential gradient: how the function varies along the manifold.
• Robustness depends on the normal gradient: how the function varies off the manifold.

Setup

Assume data \(x_1, \dots, x_n \sim \mu\) are drawn from a probability measure supported on a compact \(d\)-dimensional submanifold \(\mathcal{M} \subset \mathbb{R}^D\), with \(D \gg d\). This is the manifold hypothesis: data lives near a low-dimensional structure embedded in high-dimensional space.

We observe noisy labels \begin{equation} y \doteq f^*(x) + \epsilon, \qquad \epsilon \sim \mathcal{N}(0, \sigma^2 I), \end{equation} and fit a positive-definite kernel \(k\) via the minimum-norm interpolant³ (ridgeless KRR): \begin{equation} \hat{f}(x) = k(x)^\top K^{-1} y, \end{equation} where \(k(x) = (k(x, x_1), \dots, k(x, x_n))^\top\) and \(K_{ij} = k(x_i, x_j)\). This fits every training point exactly -- noise and all.

At any \(x \in \mathcal{M}\), the ambient space splits orthogonally⁴: \begin{equation} \mathbb{R}^D = T_x\mathcal{M} \oplus N_x\mathcal{M}. \end{equation} Let \(P_T(x)\) and \(P_\perp(x)\) denote the projectors onto the tangent and normal bundles respectively. The gradient of \(\hat{f}\) splits accordingly: \begin{equation} \nabla \hat{f}(x) = \underbrace{P_T(x)\,\nabla \hat{f}(x)}_{\nabla_T \hat{f}(x)} + \underbrace{P_\perp(x)\,\nabla \hat{f}(x)}_{\nabla_\perp \hat{f}(x)}. \end{equation}

Normal Gradient Energy

Our central object is the Normal Gradient Energy: \begin{equation} \Gamma_N \doteq \mathbb{E}_{x \sim \mu}\left[\|\nabla_\perp \hat{f}(x)\|^2\right]. \end{equation} This measures how much the interpolant varies in the normal directions, averaged over the data distribution.

To compute it, introduce the normal gradient feature matrix at each \(x\): \begin{equation} J(x) \in \mathbb{R}^{(D-d) \times n}, \qquad J(x)_{\colon, i} \doteq P_\perp(x)\,\nabla_x k(x, x_i), \end{equation} and the Gradient Kernel Matrix: \begin{equation} G \doteq \mathbb{E}_{x \sim \mu}\!\left[J(x)^\top J(x)\right], \qquad G_{ij} = \mathbb{E}_{x \sim \mu}\!\left[\nabla_\perp k(x, x_i) \cdot \nabla_\perp k(x, x_j)\right]. \end{equation} \(G\) is SPSD and depends only on the kernel and manifold geometry not the labels.

Since \(\hat{f}(x) = k(x)^\top \alpha\) with \(\alpha = K^{-1} y\), we can write \(\nabla_\perp \hat{f}(x) = J(x)\alpha\), so that \begin{equation} \Gamma_N = \mathbb{E}_{x \sim \mu}\!\left[\|J(x)\alpha\|^2\right] = \alpha^\top G \alpha. \end{equation}

Taking expectation over the label noise with \(f^* \equiv 0\) (pure noise labels, the worst case for overfitting):

The proof is immediate: substituting \(\alpha = K^{-1}\epsilon\) into \(\Gamma_N = \alpha^\top G \alpha\) gives \(\epsilon^\top K^{-1} G K^{-1} \epsilon\), and the Gaussian quadratic form identity \(\mathbb{E}[\epsilon^\top A \epsilon] = \sigma^2 \operatorname{Tr}(A)\) yields the result.

Phase Transition

If \(G\) and \(K\) are simultaneously diagonalizable⁵ with eigenvalues \(\{\gamma_j\}\) and \(\{\lambda_j\}\) in a shared basis, the trace formula reduces to: \begin{equation} \mathbb{E}_\epsilon[\Gamma_N] = \sigma^2 \sum_{j=1}^n \frac{\gamma_j}{\lambda_j^2}. \end{equation}

For translation-invariant kernels on homogeneous manifolds, we pass to a continuum approximation indexed by spatial frequencies \(q \in \mathbb{R}^d\): \begin{equation} \lambda(q) \approx \widehat{k}(q), \qquad \gamma(q) \approx \|P_\perp q\|^2\,\widehat{k}(q). \end{equation}

The normal gradient contributes an extra factor of \(q^2\) (from differentiation) relative to the kernel eigenvalues. For the Laplace kernel⁶ \(k(x, x') = \exp(-\|x - x'\|/\ell)\), whose spectrum satisfies \(\widehat{k}(q) \asymp (1 + \ell^2 q^2)^{-(d+1)/2}\), the normal gradient energy becomes: \begin{equation} \Gamma_N \asymp \int_{q_{\min}}^{q_{\max}} q^{d+1}\,(1 + \ell^2 q^2)^{-2}\,dq, \end{equation} where \(q_{\min} \sim n^{-1/d}\) and \(q_{\max} \sim n^{1/d}\) are the data-supported frequency extremes.⁷

At high frequencies, the integrand behaves as \(q^{d-3}\), and the integral diverges if and only if \(d - 3 > -1\), i.e., \(d > 2\). Evaluating:

Normal Gradient Energy Scaling (Laplace Kernel)

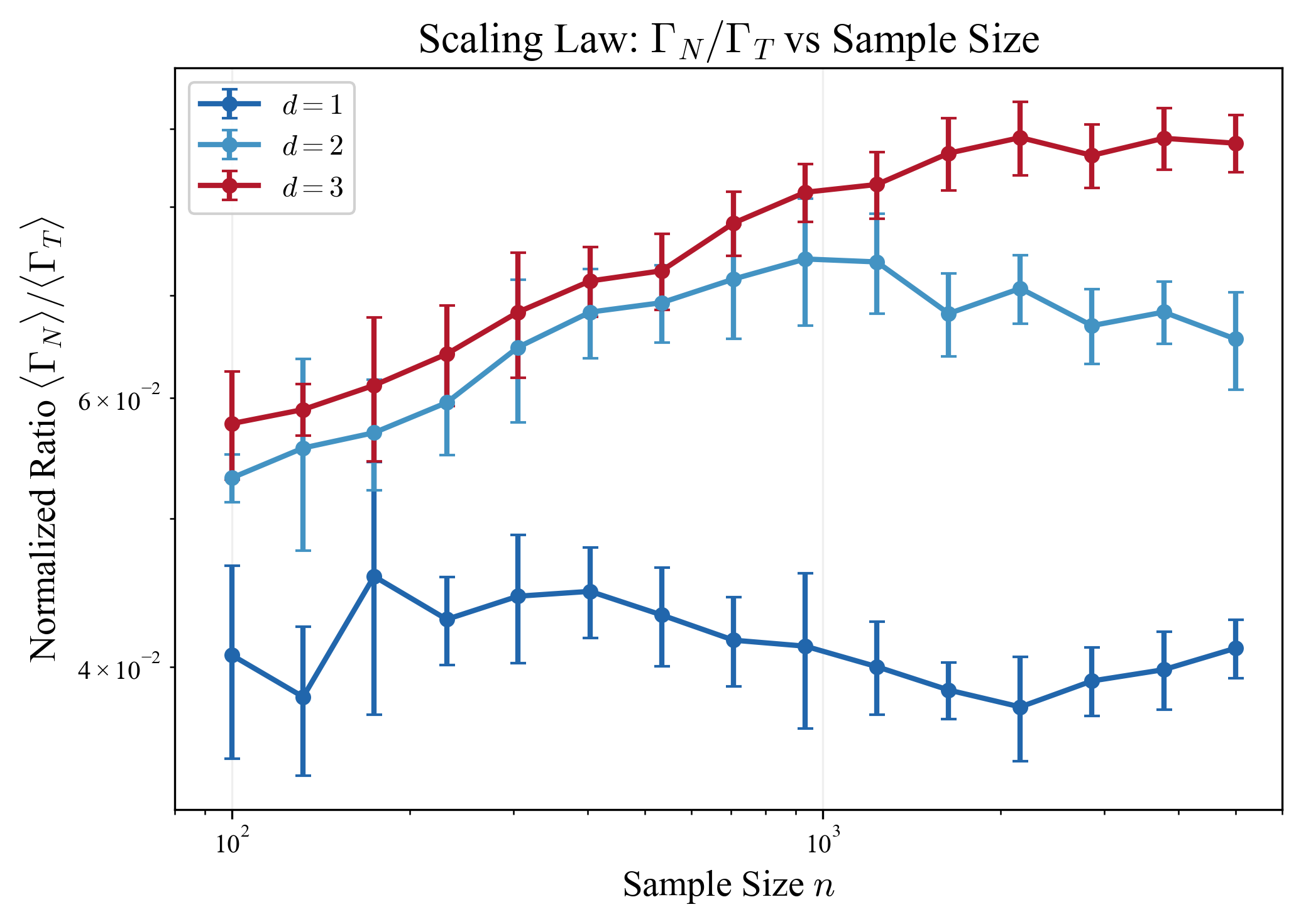

\begin{equation} \Gamma_N \asymp \begin{cases} O(1), & d \lt 2, \\ O(\log n), & d = 2, \\ O(n^{(d-2)/d}), & d > 2. \end{cases} \end{equation} The critical dimension is \(d = 2\). Below it, normal gradient energy stays bounded as \(n \to \infty\). Above it, it grows polynomially in sample size.

Intuitively, as \(n\) increases, the accessible frequency range grows (more data resolves finer structure). The normal gradient operator amplifies high frequencies by \(q^2\). When \(d > 2\), the Laplace kernel's spectral decay is not fast enough to counteract this, and normal gradient energy diverges.

Where the Noise Goes

This gives a precise answer to the original question. When the interpolant fits noisy labels:

• Along the manifold, it is smooth -- the kernel suppresses high-frequency tangential oscillations, so test MSE (a tangential quantity) stays controlled.
• Off the manifold, it oscillates wildly -- all the noise energy is encoded in the normal gradient, which grows without bound when \(d > 2\).

Concretely: the function values \(\hat{f}(x)\) remain \(O(1)\), the RKHS norm stays finite, and the interpolant fits the data exactly -- yet the normal gradient blows up. The noise is not "gone"; it is pushed into the geometry perpendicular to the data manifold.

A useful way to see this involves the inter-point spacing \(\delta_n \sim n^{-1/d}\) and the screening length⁸ \(\xi_n \sim n^{-1/(d+1)}\) of the equivalent kernel. Since \begin{equation} \frac{\xi_n}{\delta_n} \asymp n^{1/(d(d+1))} \longrightarrow \infty, \end{equation} the equivalent kernel actually gets wider relative to inter-point spacing as \(n \to \infty\). The interpolant is not building sharper spikes around each training point -- it is becoming more spread out. The divergence in \(\Gamma_N\) is therefore driven by amplitude growth in the normal direction, not spike sharpening in the tangential one.

Adversarial Robustness

The divergence of \(\Gamma_N\) has a direct consequence for adversarial robustness. For a point \(x \in \mathcal{M}\) and an off-manifold perturbation \(\delta \in N_x\mathcal{M}\), a first-order Taylor expansion gives: \begin{equation} \hat{f}(x + \delta) \approx \hat{f}(x) + \nabla_\perp \hat{f}(x) \cdot \delta. \end{equation} The minimal-norm perturbation that flips the prediction is: \begin{equation} \delta^*(x) = -\frac{\hat{f}(x)}{\|\nabla_\perp \hat{f}(x)\|^2}\,\nabla_\perp \hat{f}(x), \end{equation} with magnitude (the adversarial margin): \begin{equation} R_\perp(x) \approx \frac{|\hat{f}(x)|}{\|\nabla_\perp \hat{f}(x)\|}. \end{equation}

Since \(\hat{f}(x) = O(1)\) while \(\|\nabla_\perp \hat{f}(x)\| \asymp \Gamma_N^{1/2}\), the margin scales as \(\Gamma_N^{-1/2}\):

Interestingly, more data makes the model less robust (for \(d > 2\)) -- adding more data increases the spectral bandwidth of the interpolant, amplifies the normal gradients, and shrinks the adversarial margin.

Back to Benign Overfitting

This is complementary to the classical benign overfitting theory. For the Laplace kernel:

• Test MSE remains stable even for pure noise labels.
• Bias and variance stay controlled.
• The function is smooth along the manifold.

Yet robustness collapses as \(n\) increases for \(d > 2\). This is not a contradiction -- it reflects the fact that generalization and robustness are fundamentally different geometric properties: \begin{equation} \text{Generalization} \equiv \text{tangential gradient}, \qquad \text{Robustness} \equiv \text{normal gradient}. \end{equation}

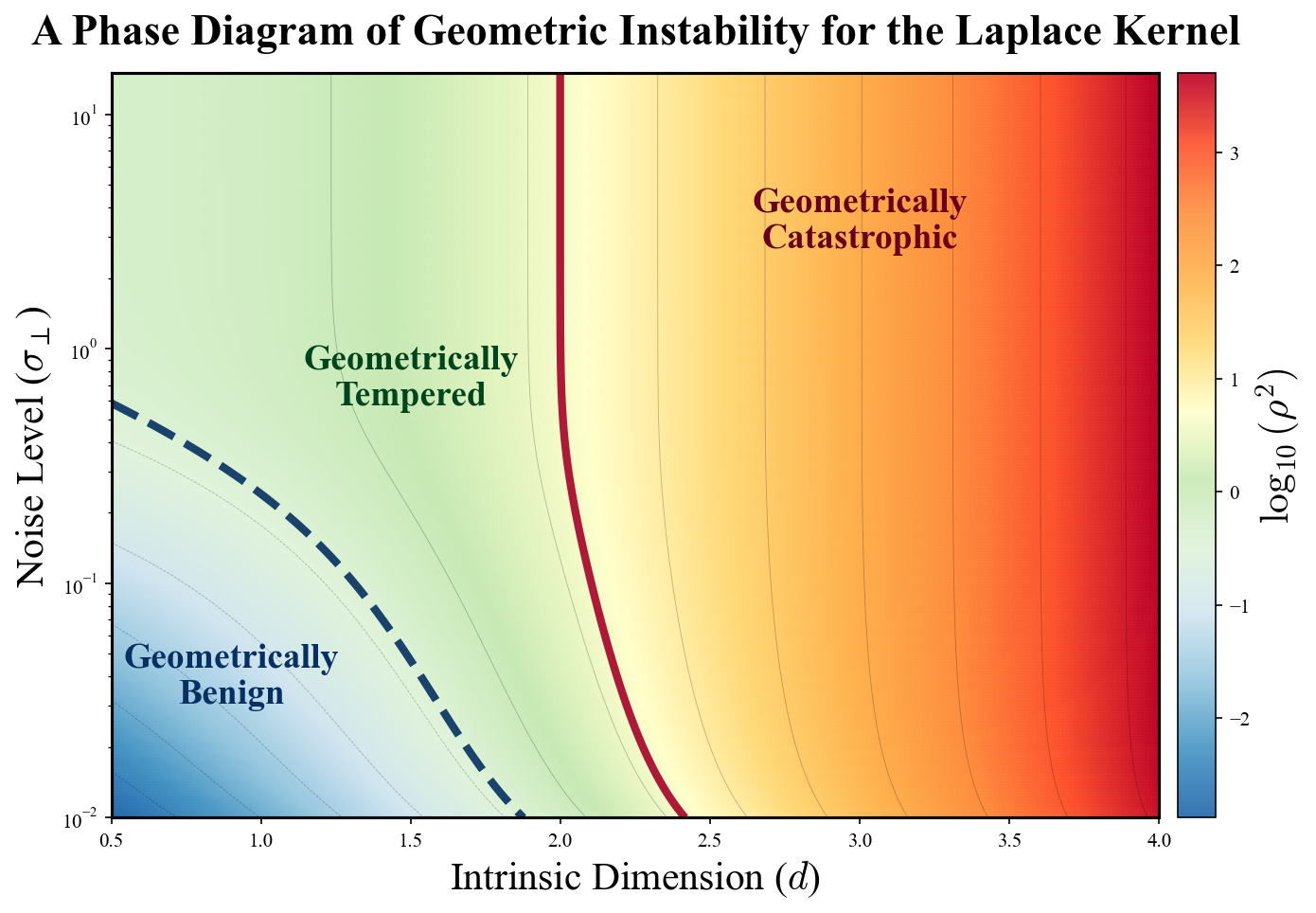

Phase Diagram

Define the geometric instability ratio \begin{equation} \rho^2 \doteq \frac{\Gamma_N}{\Gamma_T}, \end{equation} where \(\Gamma_T = \mathbb{E}_{x \sim \mu}[\|\nabla_T \hat{f}(x)\|^2]\) is the tangential gradient energy. As \(n \to \infty\):

• \(d \lt 2\): \(\rho^2 \to 0\) -- geometrically benign.
• \(d = 2\): \(\rho^2 \sim \log n\) -- tempered, slow logarithmic growth.
• \(d \gt 2\): \(\rho^2 \sim n^{(d-2)/d}\) -- geometric catastrophe, normal gradients dominate.

(Here we have borrowed Mallinar et al.'s terminology.)

The same critical dimension \(d = 2\) governs the divergence of \(\Gamma_N\), the spectral accumulation of high-frequency modes, and the vanishing of the adversarial margin \(R_\perp\). This is not a coincidence -- all three are manifestations of the same spectral phase transition.

TL;DR

The noise goes off-manifold. When a minimum-norm interpolant fits noisy labels, it preserves smoothness along the data manifold (enabling generalization) at the cost of encoding all the noise energy in the normal gradient (destroying robustness). In high intrinsic dimensions, this tradeoff is unavoidable: the geometry of kernel spaces forces noise into normal directions, and those directions grow increasingly unstable with more data.

Overfitting is geometrically benign only when \(d \lt 2\), which is quite restrictive in practice. For data on manifolds of moderate intrinsic dimension, interpolation will generalize but degrade adversarially with sample size -- regardless of how much data you add.
